Caja Tv Digital Tdt Para Carro

Caja Tv Digital Tdt Para Carro

CARACTERISTICAS:

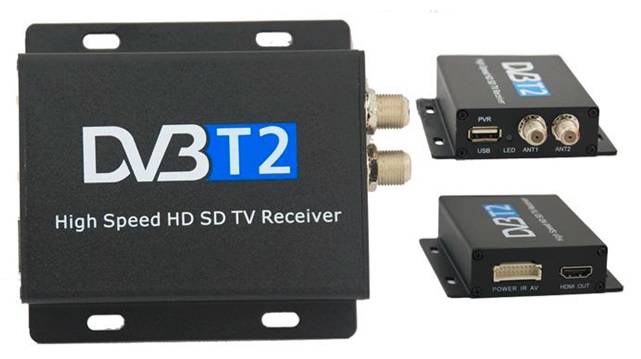

• Car DVB-T2 DVB-T USB HDMI High Speed HD SD TV receiver 2 Active Antenna flying tuner
• Support H.264/AVC, MPEG2~MPEG4 Video Decode
• Available to upgrade the firmware via USB slot
• USB Recorder, PVR,
• Standard for DVB-T and DVB-T2

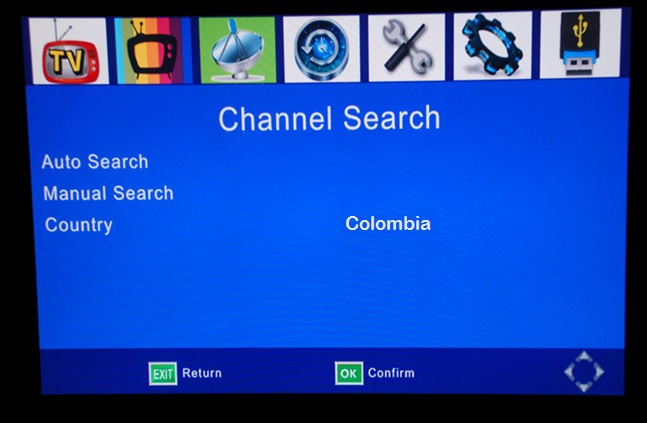

• Auto searching and updating bit rate information
• Storage for 2000pcs channels
• Memory function after power off
• Support OSD TELETEXT
• Multi Language Support: English, Russian, French, Germany, Spanish, Italian, Portuguese, Danish, Czech, We can do what you need
• EPG program guide and PIG (Picture in Graphics ) Function
• 6MHz, 7MHz, 8MHz Band-wide
• HDMI output (One route)
• Audio-R, Audio-L output
• Support IR output and extended remote sensor receiver

ESPECIFICACIONES:

– Input frequency: VHF 177.5MHz – 226.5MHz UHF 474MHz – 858MHz
– Modulate: QPSK/16 – QAM/256-QAM
– Decode standard: MPEG4, MP@ML, MP@HL,H.264/AVC
– Audio decode standard: MPEG-1, and-2, layer and 2, MPEG-4, HE-AAC
– One way CVBS RCA Output:
– Output Resistance: 75 ohm
– Output Voltage: 1.0`2.0mVp-p
– Audio output: 2Vp-p
– Power Supply: DC 12V~24V 6W
– Connecting Terminal:
– 2 Active amplifier antenna input jack (5V supply), car power input jack (Battery+, Battery-) , R/L Audio CVBS Video output jack, External remote control IR cord jack, USB upgrade socket, HDMI High-definition output jack.
– Applicable Power Supply: Car storage battery (12V~ 24V)
– Outer dimension: 125mm x 85mm x 26mm
– Application Temperature: -5 ~40 degree
– Storage Temperature: -20~60 degree

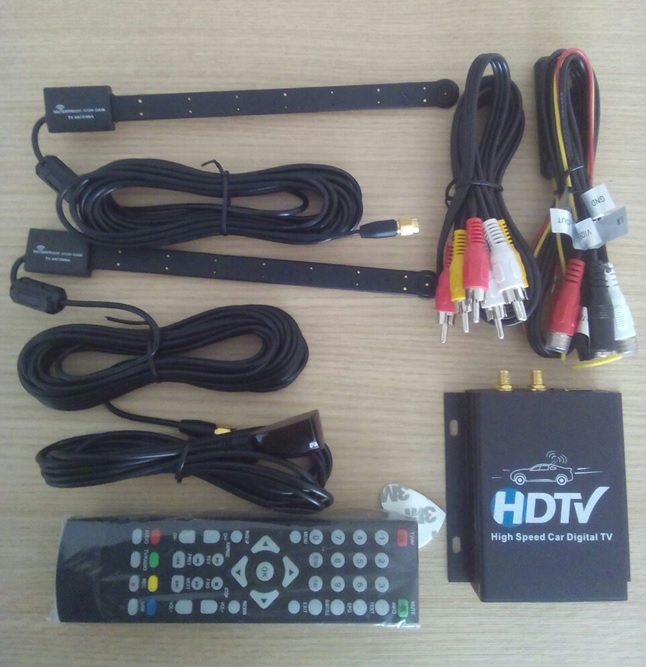

CONTENIDO (en la Caja):

– Car DVD-T2 (TDT) x1
– 25db Antenna x2
– Remote control x1
– IR extended cable x1
– AV cable x1
– Power cable x1
– User Manual x1
